Pairing Your XTUGA UHF Conference Receiver: A Step-by-Step Guide
No AV integrator needed. Fifteen minutes, start to finish, if you follow this order.
The Short Answer
Pairing an XTUGA gooseneck system like the YT8 or CM280 takes three steps per channel: power on the receiver, hold the sync button on each gooseneck mic until its channel indicator locks, then test each one individually before running them all together. The YTH800 uses a faster infrared point-and-sync method instead.
Kadalasan, ang dahilan ng "defective" complaint na natatanggap namin ay hindi naman sira ang unit, mali lang ang pagkaka-pair. Sundin niyo itong order at malaking bahagi ng problema, naaayos na agad.
Step-by-Step: Standard Button-Sync Systems (YT8, CM280, A800)
- Power on the receiver first, alone. Let it fully boot before touching any gooseneck mic, its channel display should show all channels as unpaired.

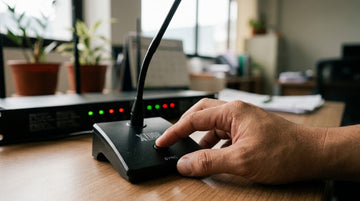

- Pair one mic at a time, not all at once. Hold the sync button on gooseneck mic #1 until the receiver's channel 1 indicator locks solid. Release, confirm the lock, then move to mic #2.
- Repeat down the line for every channel you're using. Skipping ahead or pairing two mics simultaneously is the single most common cause of channel conflicts.
- Test each mic individually before a real meeting. Tap each gooseneck head once and confirm it shows on the corresponding receiver channel before assuming the whole system is ready.
Step-by-Step: Infrared Sync (YTH800)
- Power on the receiver and locate its infrared sync window, usually a small dark panel on the front face.
- Point the gooseneck mic head directly at the IR window, roughly 5–10cm away, then press the mic's sync button once.
- Watch for the confirmation light on the receiver, this should happen almost instantly since there's no hold-and-wait step like the standard method.
- Repeat per channel, same test-before-meeting rule applies.
Three Mistakes That Cause Most "It's Not Working" Calls
1. Pairing Mics Out of Order
Jumping to channel 4 before finishing channel 2 confuses the receiver's channel map. Always go in sequence.
2. Not Fully Charging Mics Before First Use
A gooseneck mic with a near-empty battery can sync successfully but then drop mid-meeting. Give every unit a full charge before its first real use.
3. Placing the Receiver Too Close to Other Wireless Gear
Wi-Fi routers, other UHF systems, and even some LED lighting can interfere with sync and ongoing signal. Keep the receiver at least a meter from other wireless transmitters where possible.
If a Mic Still Won't Pair
Reset the specific channel on the receiver (check your unit's manual for the reset combination, it varies slightly by model) and re-run the sync steps for that channel alone, don't reset the whole receiver over one stubborn mic.
Frequently Asked Questions
Do I need to re-pair mics every meeting?
No, pairing is a one-time setup per mic unless you factory-reset the receiver or swap mic units.
Can two receivers in adjacent rooms interfere with each other?
It's possible in buildings with many UHF systems; if you notice cross-room interference, our XTUGA GA816 antenna distribution system is built specifically to manage that in multi-room offices.
What if the channel light blinks instead of locking solid?
A blinking light usually means low battery or a signal in progress, not yet a confirmed pair, charge the mic and retry.
Still Stuck?
Message VMI Direct with your model and what step you're stuck on, we'll walk you through it.
