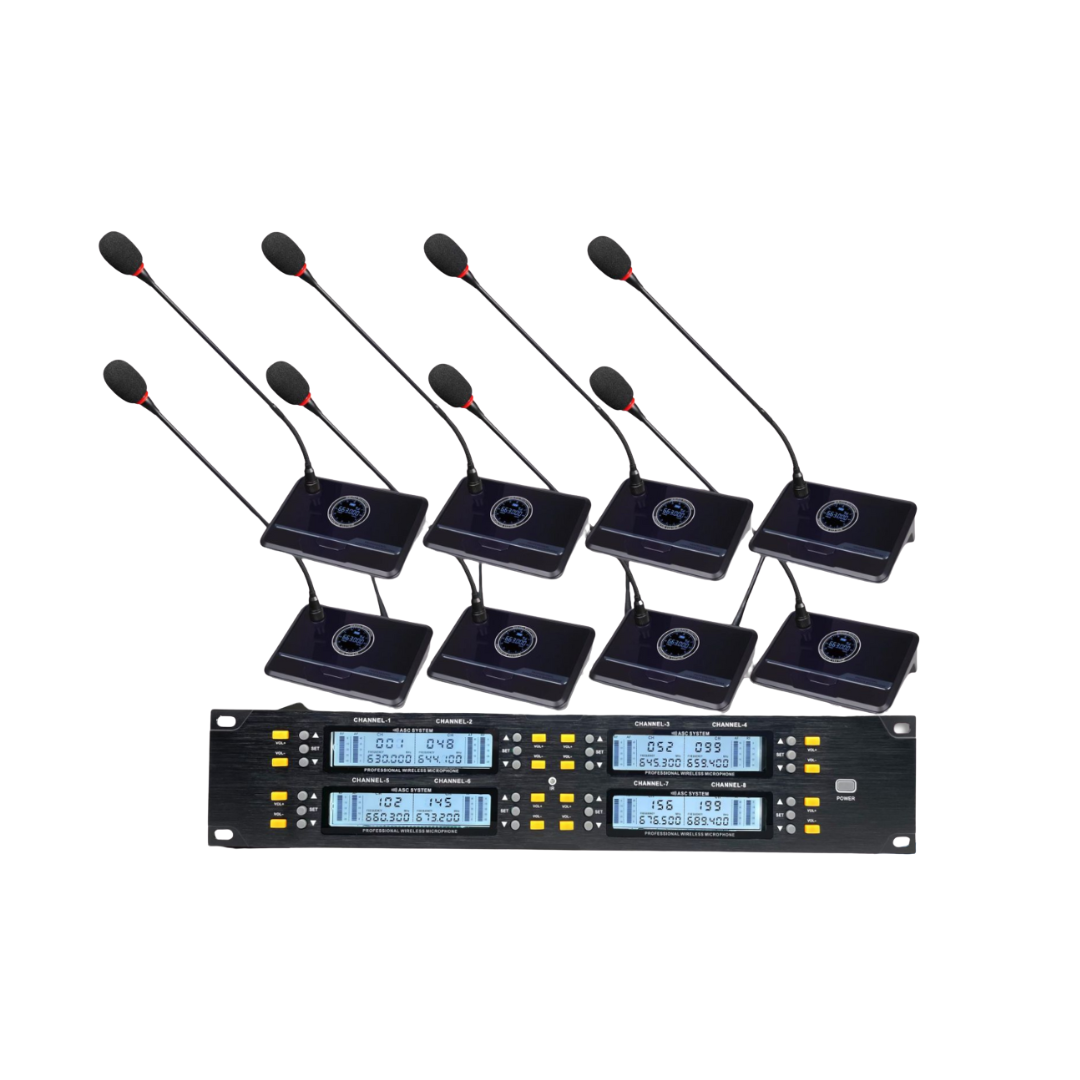

XTUGA YTH800 8-Channel UHF Wireless Microphone System Conference Noise-Canceling

Regular price ₱19,199.00
Sale price ₱19,199.00 Regular price ₱21,199.00
Unit price
Save 9%
VMIDirect Wireless Microphone System with Multiple Handheld and Lavalier Microphones for Clear Audio

XTUGA YTH800 8-Channel UHF Wireless Microphone System Conference Noise-Canceling

Regular price ₱19,199.00
Sale price ₱19,199.00 Regular price ₱21,199.00
Unit price
Product description

Infrared Frequency-Synchronized UHF Band Technical Specification Sheet

-- Utilizes π/4 DQPSK digital modulation technology, delivering superior RF and audio performance

-- Low transmission latency, long transmission range

-- Fully integrated chipset solution ensuring stable product performance

-- 2×100 adjustable frequency points

-- Enhanced wireless reception performance

-- High-quality LCD display

-- Built-in automatic clean channel search function

-- Optional electronic volume control

System Parameters:

• Frequency Range: 640–690 MHz

• Transmit Power: <10 mW

• Dynamic Range: >90 dB

• Total Harmonic Distortion: <0.5%

• Frequency Response: 30 Hz – 15 kHz

• Receiver Sensitivity: < –105 dBm

Receiver Board Parameters:

• Supply Voltage: DC 12V, 1000 mA

• Frequency Range: 640–690 MHz

• Dynamic Range: >90 dB

• Total Harmonic Distortion: <0.3%

• Latency: <3 ms

• Audio Signal-to-Noise Ratio: >85 dB

• Frequency Response: 30 Hz – 15 kHz

• Receiver Sensitivity: < –105 dBm

• Operating Range: >60 meters

Handheld Transmitter (Microphone) Parameters:

• Operating Voltage: 2×AA batteries

• Operating Current: 100–120 mA

• Frequency Range: 640–690 MHz

• Frequency Error: <15 ppm

• Transmit Power: 10–14 dBm

• Frequency Response: 30 Hz – 15 kHz
