Signal Dropouts in a Multi-Room Office? What the XTUGA GA816 Fixes
Three conference rooms, three wireless systems, and one keeps cutting out. Here's why, and the fix.
The Short Answer
The XTUGA GA816 (₱14,099) is a UHF signal booster and splitter that lets multiple wireless microphone receivers share a single, better-positioned antenna setup instead of each fighting for signal through its own weak built-in antenna, which is the usual root cause of random dropouts when several conference rooms in one building run wireless systems simultaneously.
Isang IT manager sa isang office tower sa Makati ang nag-message sa amin: gumagana maayos ang bawat conference room mic nang paisa-isa, pero pag sabay lahat, may isa o dalawang room na parang naglalaro ang signal. That's a textbook antenna-congestion problem, and it's exactly what the GA816 addresses.
Why This Happens in Multi-Room Buildings
Every wireless microphone receiver ships with its own small built-in antenna, adequate for a single, isolated room. Stack three or four of these receivers across adjacent rooms on the same floor, plus other tenants' wireless gear, Wi-Fi access points, and building infrastructure, and you get UHF spectrum congestion where receivers start stepping on each other's signal, especially near shared walls or in open-plan layouts with glass partitions.
What an Antenna Distribution System Actually Does
Instead of each receiver relying on its own weak, close-range antenna, a distribution system like the GA816 connects multiple receivers to one or two externally-mounted, better-positioned antennas, boosting and cleanly splitting the signal so every connected system gets a stronger, less congested feed. Think of it as upgrading from several cheap indoor TV antennas to one properly mounted rooftop antenna feeding every television in the building.
| Symptom | Likely cause | GA816 helps? |
|---|---|---|
| Dropouts only when multiple rooms run mics simultaneously | Antenna congestion | Yes |
| Dropouts near metal furniture or glass walls, single room | Dead spots, not congestion | No, see true diversity systems instead |
| Dropouts near the mic's max range | Signal weakening with distance | Partially, better antenna placement helps |
| Crackling audio, not full dropouts | Low battery or interference from other devices | No, check battery and nearby electronics first |
When You Don't Need One
A single conference room with a single wireless system rarely needs a distribution system, the built-in antenna on units like the YT8 or CM280 is sufficient. This is a multi-room, multi-system problem, not a single-room upgrade. If your single room has dead-spot issues from metal or glass, the XTUGA XM200's true diversity reception is the more relevant fix, not an antenna distribution system.
Installation Overview

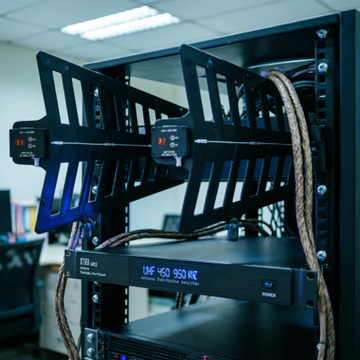

Setup generally involves mounting the distribution unit centrally (an IT closet or ceiling void works well), running feed lines to each participating receiver, and positioning the shared external antenna(s) with clear line of sight across the served rooms. This is a step up in complexity from single-system pairing, worth budgeting time for a proper install rather than a rushed weekend job.
Frequently Asked Questions
How many receivers can one GA816 support?
Check the current product listing for exact port count and supported receiver load for your specific building layout.
Does this work with non-XTUGA wireless systems too?
Compatibility depends on the specific receiver's antenna connector type, confirm with VMI Direct before mixing brands.
Do I need an AV integrator to install this?
For a straightforward 2–3 room setup, a competent IT technician can typically handle it; larger multi-floor deployments benefit from professional installation.
Dealing With Multi-Room Dropouts?
Tell VMI Direct how many rooms and receivers you're running, and we'll confirm whether antenna distribution is actually your fix.
