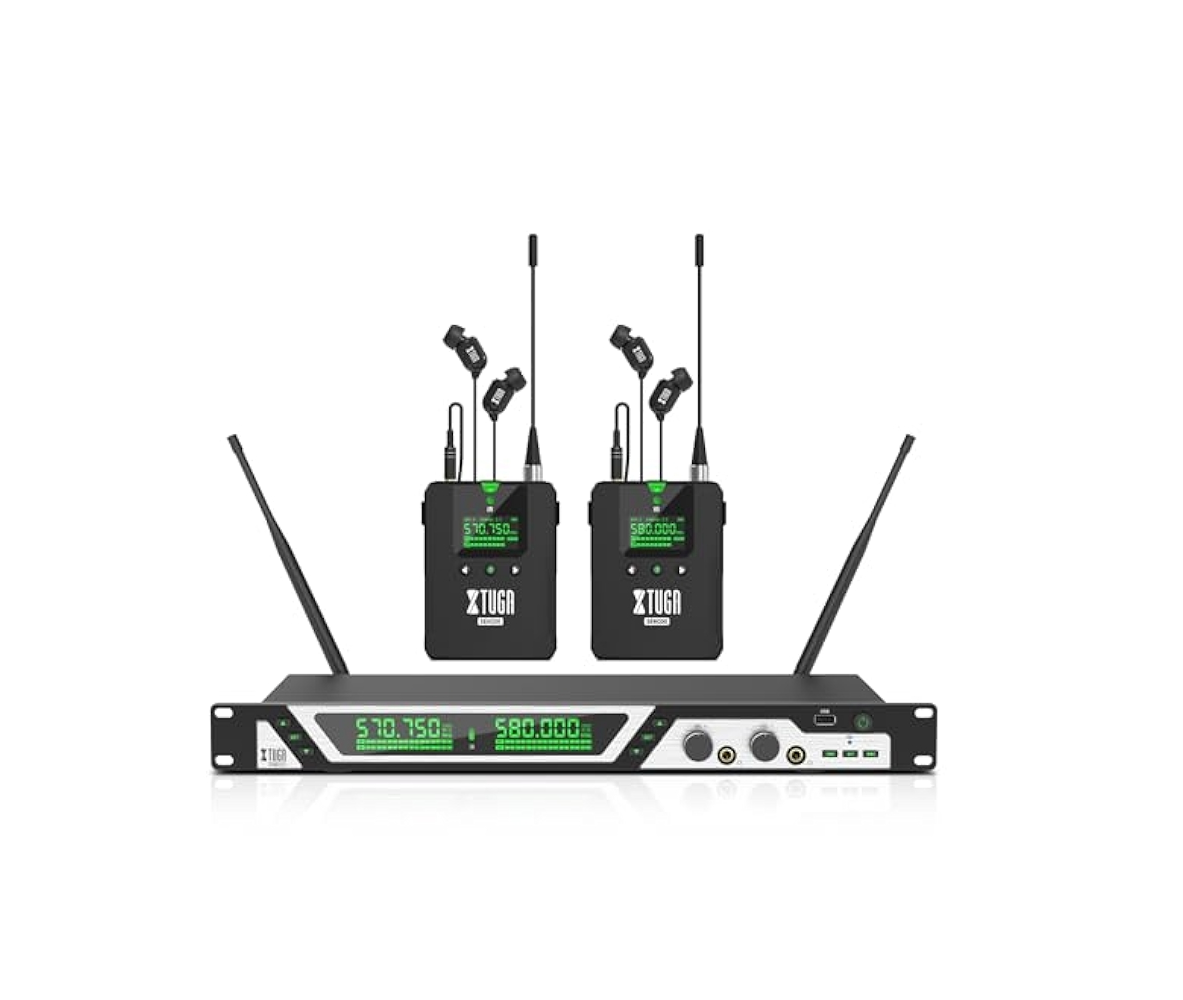

XTUGA SEM200 UHF Stereo Wireless In Ear Monitor System

Description:

STEREO IN EAR MONITOR SYSTEM

You can select the stereo mode for both the transmitter and receiver to enjoy stereo performance of the system. Built-in Limiter circuitry eliminating distortion under excessive input levels. Used in stage, it can replace traditional complex sound monitoring equipment, achieve admirable listening effect.

WIRELESS PERFORMANCE

SEM200 UHF stereo wireless in ear monitor system uses IR automatic connection technology. The wireless in ear monitor system operates in 550-599MHz band and a total of 200 frequency points. The wireless transmission distance is up to 80M. Also improve the signal-to-noise ratio of the dynamic range so that the system has the best anti-interference to show the perfect original sound again.

ELEGANT APPERANCE AND DISPLAY

Elegant liquid crystal display panel and LCD display low-battery indicator on the receiver. Simple setup with uninterrupted frequency to optimize sound performance for this monitor system. Good quality earbuds provide purer sound and enhanced performance for studio and stage monitor.

HIGH QUALITY AND TECHNOLOGY

Using advanced circuit design, clear the receiving blind angle to make the system's receiving signal steady. The system is strong, because of the housing is made by tough metal material. It is the best choice of stage performance monitor product.

Specification:

Transmitter:

• Frequency band : 550-599MHz
• Preset frequency : 2 channels 100CH each
• Transmit board operating current : 290±20mA
• Transmit power : ≥13dBm
• Transmit modulation : Digital modulation
• Front panel output : 6.35 2-channel socket stereo headphone

output level: Maximum 1100±100mV

• Rear panel output : 6.35 mono socket mixed output level: Max 1150±100mV
• Audio input :

XLR and 6.35 composite socket input

XLR balanced input: maximum 900mV /6.35 single-ended input: maximum 1800mV

3.5 headphone jack input: Maximum 900mV

• Input power : DC12V/500mA

Receiver：

• Receiver board operating current : 130±10mA
• Lithium battery low voltage check voltage : 3.4V
• Lithium battery automatic shutdown Voltage : 3.2V
• Headphone output level : Maximum 110mV
• Receive Sensitivity :≤100dBm
• Receiver left and right stereo separation :≥65dB
• Charging time : 2.5h
• Using time : 6h
