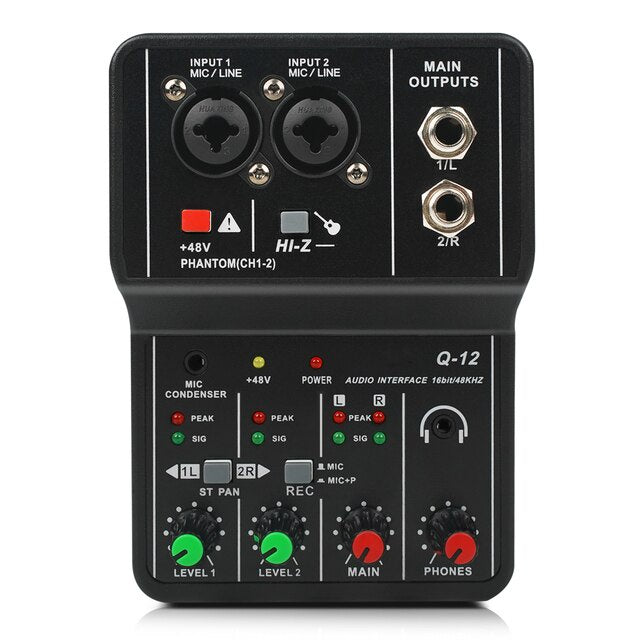

XTUGA Q12 Professional Audio Interface Mini Mono USB Sound Card with Monitoring 2Channel Audio Mixer
XTUGA Q12 Professional Audio Interface Mini Mono USB Sound Card with Monitoring 2Channel Audio Mixer
XTUGA Q12 Professional Sound Card For Studio Recording, Live Broadcast, K Song, Performance

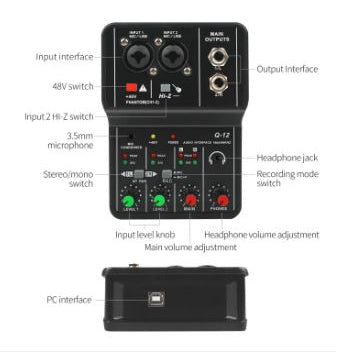

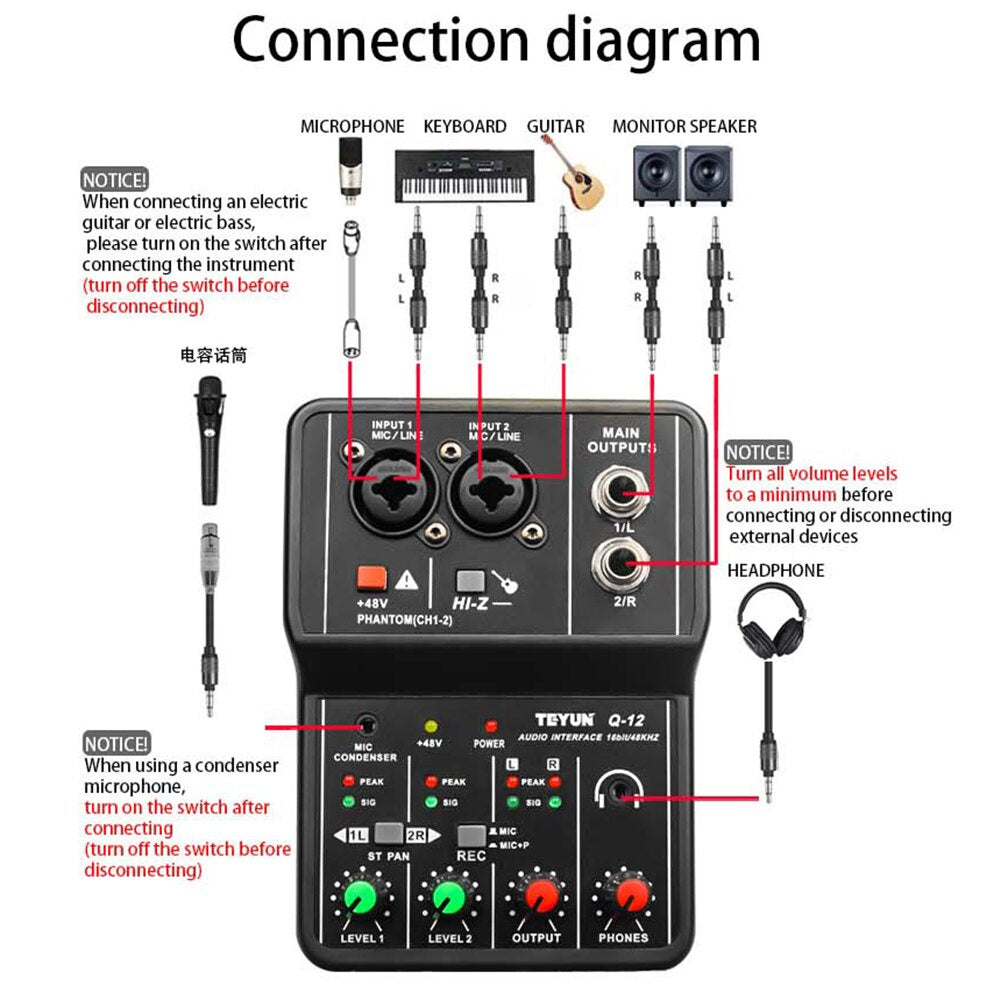

16 bit/48 kHz Professional Audio Quality- XTUGA Q12 audio interface, Equipped with 2 combo jacks XLR+6.35mm mic/line/guitar input. This includes a +48V phantom power supply for condenser microphones, the Q12 audio interface has a studio-grade 16-bit/48 kHz converter for optimal sound quality. Whether you are a singer, songwriter, producer on the go, or need to accompany during recording, the ultra-reliable Q12 audio interface will help you shine in the digital field.

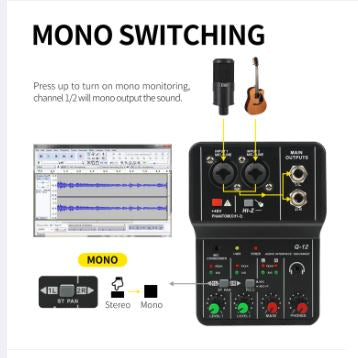

Stereo/Mono Output, Perfect Recording Creation Assistant- wireless 2-channel audio interface controller DJ mixer is the perfect way to mix audio from MP3s, microphones and power amplifier connected devices. Switch between 2-channel mono and 1-channel stereo with one key.

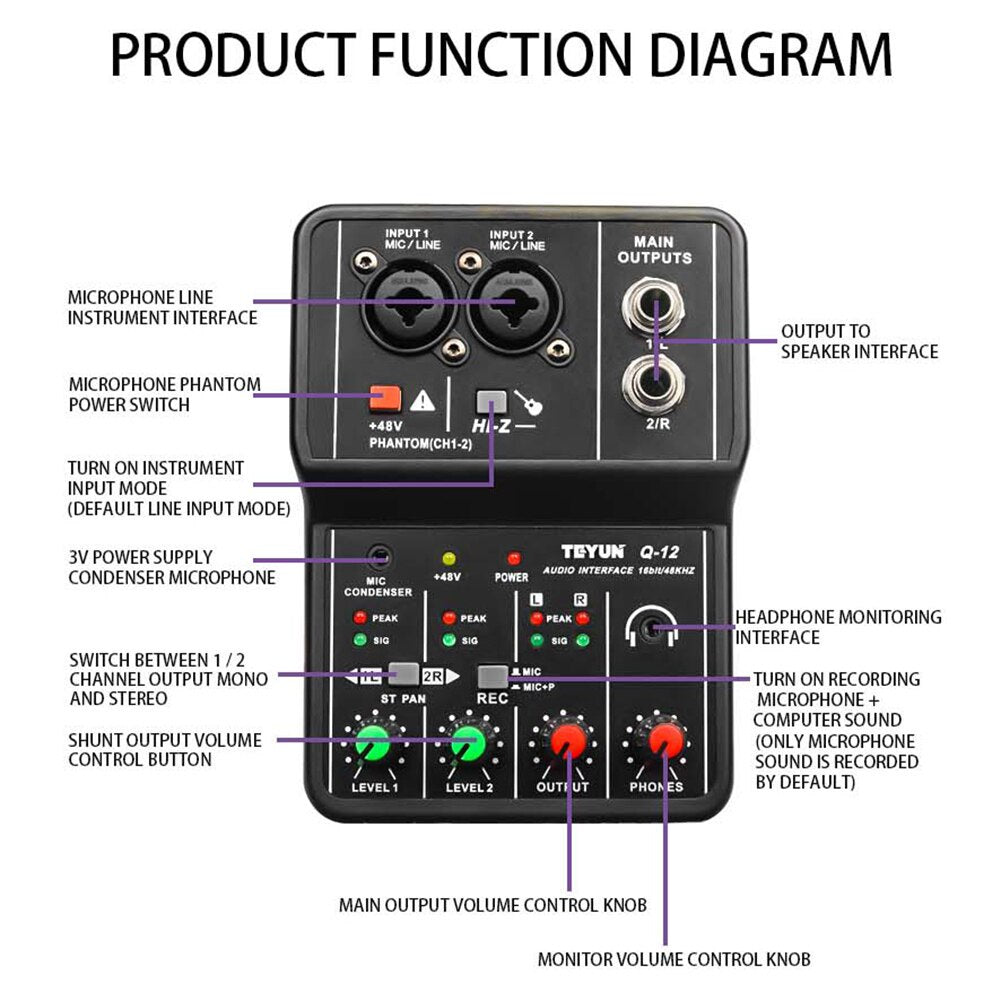

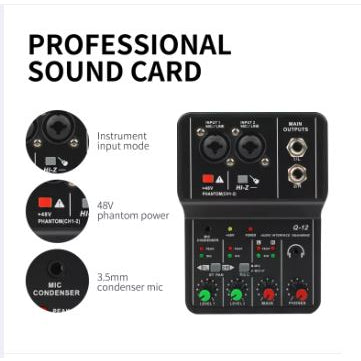

Separate HIZ (instrument input mode) button- This product has only the tuning function, no Bluetooth and USB socket music playback function circuit, more professional tuning, better internal circuit optimization, better sound quality, and lower noise floor.

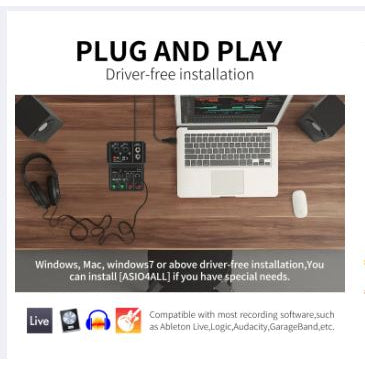

Driver-Free Installation & Wide Compatibility- XTUGA Q12 sound card connects with PC can support plug and play, no need to install the driver. (Note: if you have special needs for recording you can install [ ASIO4ALL ] by yourself) . It is compatible with most recording software, such as Reaper, Audacity, GarageBand, Cubase, Ableton Live, etc. Q12 sound card provides you with new freedom in recording, editing and mixing, any audio you record is at studio quality, meaning you won’t have to go to a studio to re-record it later.
Zero-Latency Monitoring - XTUGA Q12 audio interface mixing control allows zero-latency direct monitoring, which means musicians can experience their performance clearly – with no delay or lag in the returning signal, resulting in a better performance and recording.
TECHNICAL SPECIFICATION:
MIC INPUT 1-2(balanced )
Frequency response:-1/-1dB. 20Hz- 20kHz
Dynamic Range:82 dB weighting
THD +N 0.03%,1kHz
Maximum input level: +6dBu Input resistance 4kQ2
Gain range: +3dB- +60dB
HI-ZINPUT 2 (Unbalanced)
Maximum input level: +3.0dBV
Input resistance: 1 MQ
Gain range:-10dB -+40dB
LINE INPUT 1/2(balance)
Maximum input level:+10dBu
Input resistance: 18.5kQ
Gain range:-10dB -+40dB
XTUGA Q12 Professional Audio Interface Mini Mono USB Sound Card with Monitoring 2Channel Audio Mixer
SPECIFICATION:
Item: Computer Recording Sound Card
Model Number: Q-12
Color: Black
Input Channel: 2 Mono (MIC/LINE) can change 1 stereo
Output Channel: 1 Stereo
Phantom Voltage: +48V
High Pass Filter: Attenuates frequencies below 80Hz with 12dB Octave Slope
USB Audio: Oscilloscope 48kHz; width 16bit
Power requirements: ≥ 5W

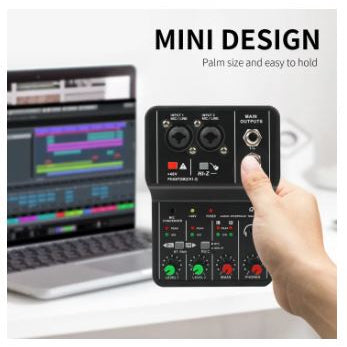

Size: 14*10*4.4cm/5.51*3.94*1.73''
Color box size: 15.2*12.5*5.5cm
Net weight: 0.285 kg
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the picture. Thank you!
Please allow 1-2cm differences due to manual measurement.
PRODUCT LIST
Sound card *1
Manual*1
