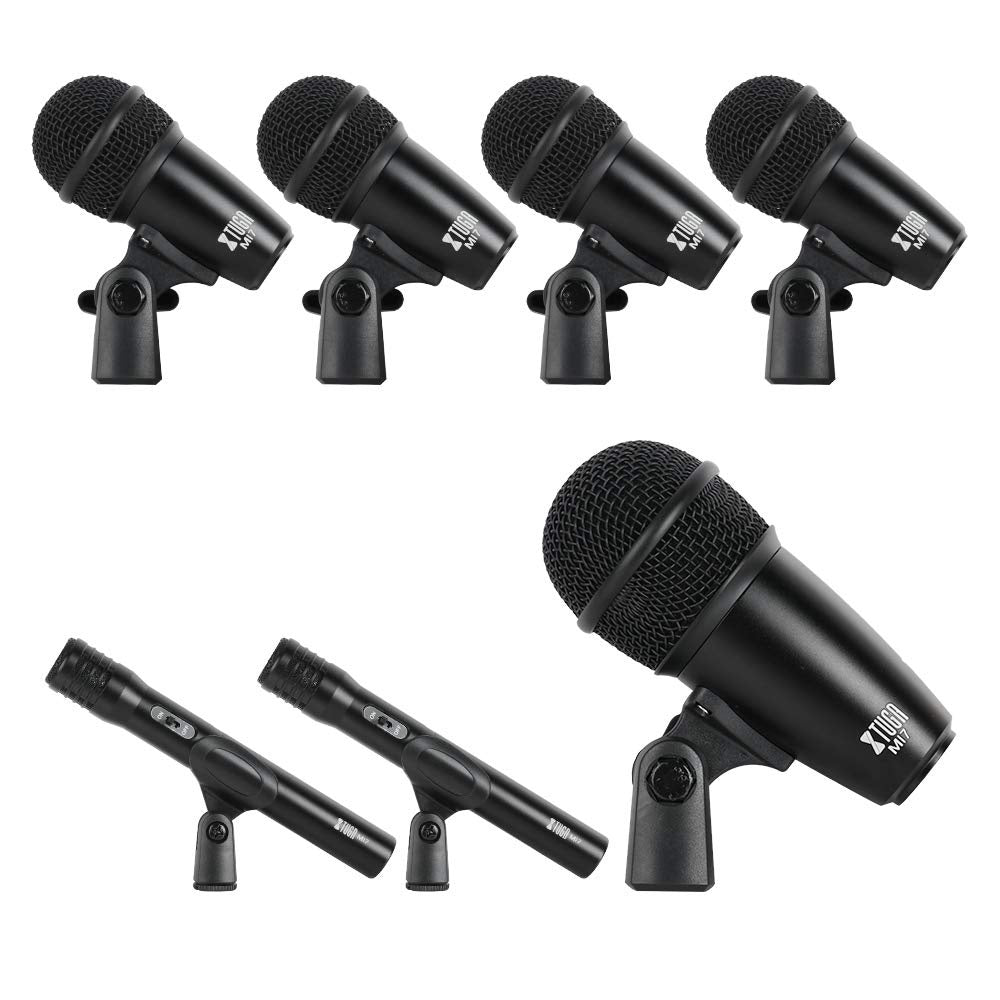

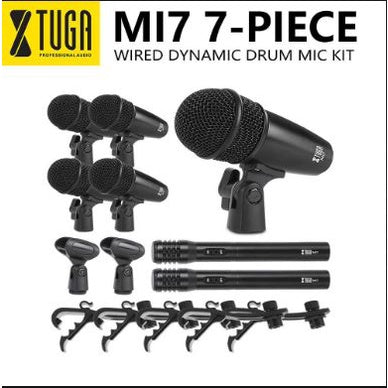

XTUGA New MI7 7Pcs Dynamic Drum Mic Kit Whole Metal Kick Bass Tom/Snare & Cymbals Microphone
Product Description
Supercardioid Dynamic Instrument Microphone: This high-output dynamic microphone is designed specifically for kick drums and other bass instruments. It delivers excellent attack and punch, providing studio-quality sound even at extremely high sound pressure levels.
High Output Design Drum Microphone: The compact, supercardioid dynamic microphone is ideal for professional sound reinforcement and studio recording. Its uniform pickup pattern ensures high gain before feedback and excellent rejection of unwanted noise.

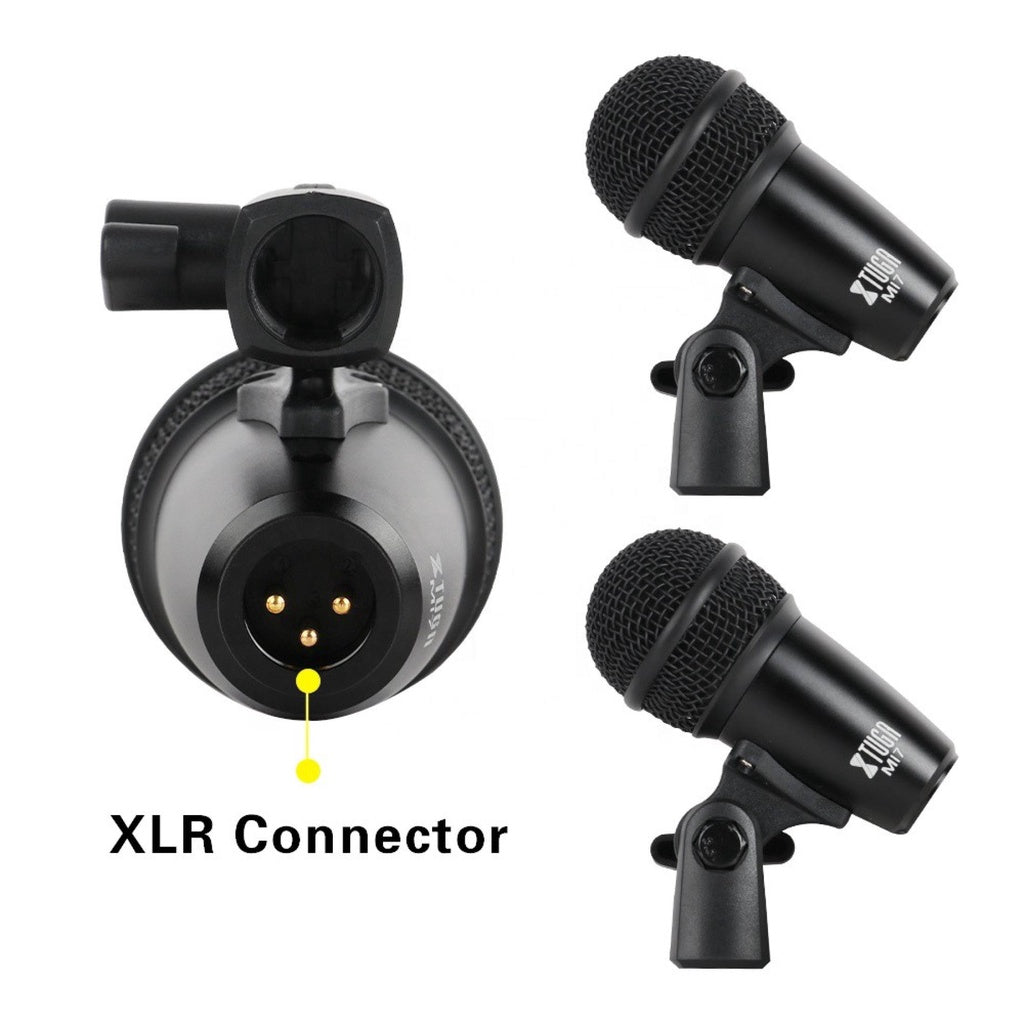

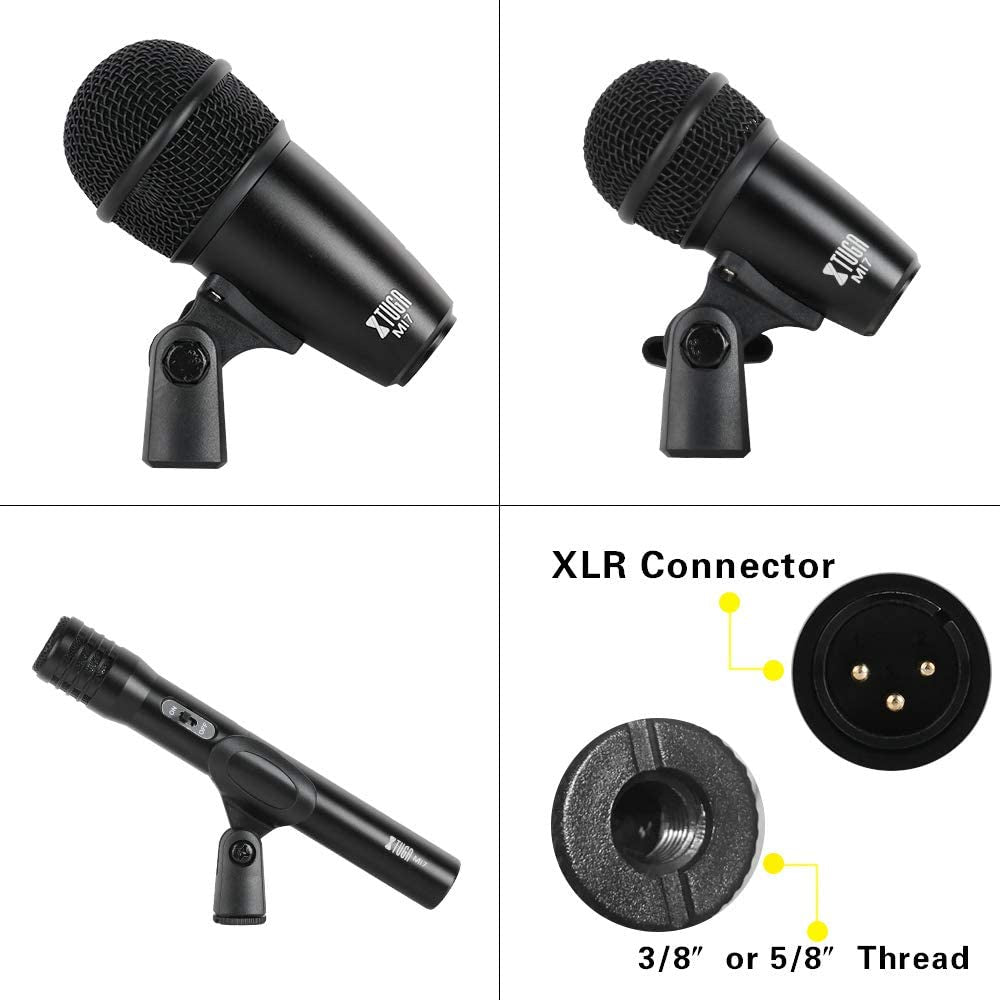

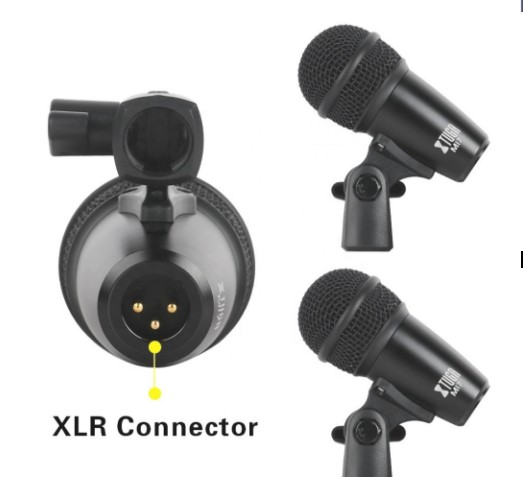

Simple Installation and Connection: Features a built-in dynamic locking adapter with an integral XLR connector for easy installation. Each microphone includes a standard 3/8" or 5/8" thread to fit all types of mic stands. The adapter keeps the mic secure, even under impact from a drumstick.

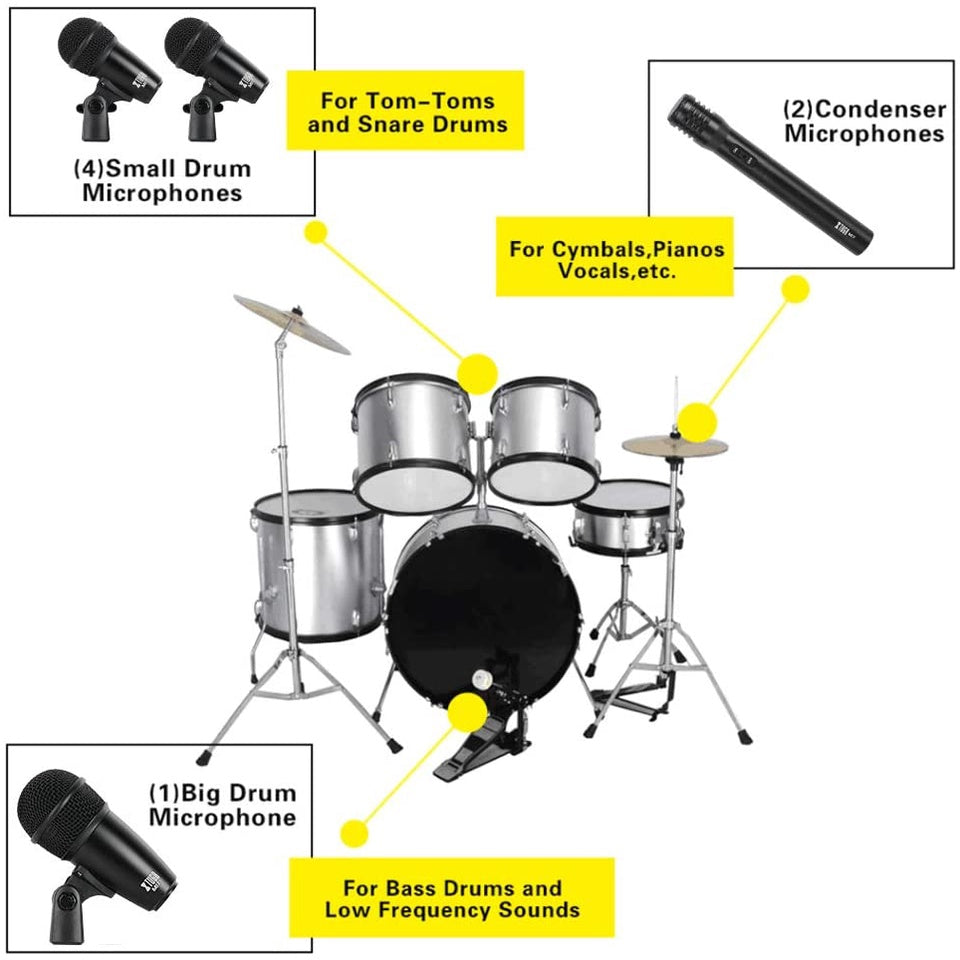

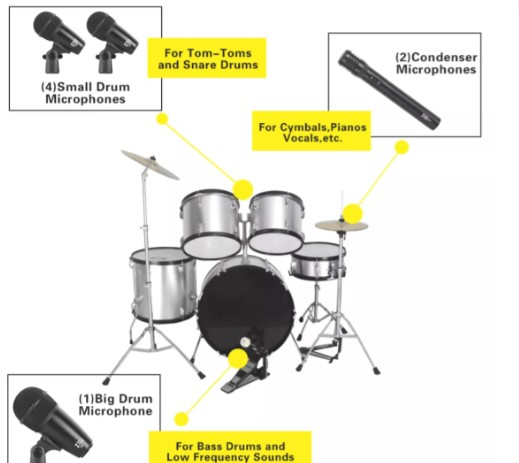

Adaptable and Versatile Applications: Suitable for close miking of tom-toms, percussion instruments, guitar amps, brass instruments, and woodwinds. All microphones include standard XLR connectors for wide compatibility.
XTUGA MI7 7-Piece Wired Dynamic Drum Mic Kit Features
- S/N Ratio: 70dB
- Connector: XLR Standard
- Power Supply: Phantom 24-48V
- Polar Pattern: Unidirectional
- Max Input SPL: 130dB (@1KHz <1% THD)
- Output Impedance: 400Ω ± 30% / 500Ω ± 30% / 200Ω ± 30%
- Sensitivity: -58dB ± 3dB / -53dB ± 3dB / -45dB ± 3dB
- Frequency response shaped specifically for kick drums and bass instruments
- Built-in bracket with dynamic locking adapter and XLR connector simplifies installation
- Studio-quality performance at high sound pressure levels
- Supercardioid pattern offers high gain before feedback
- Hardened steel mesh grid resists wear and abuse
- Advanced pneumatic shock mount system reduces mechanical noise and vibration
- Low sensitivity to variable load impedance
Product Use

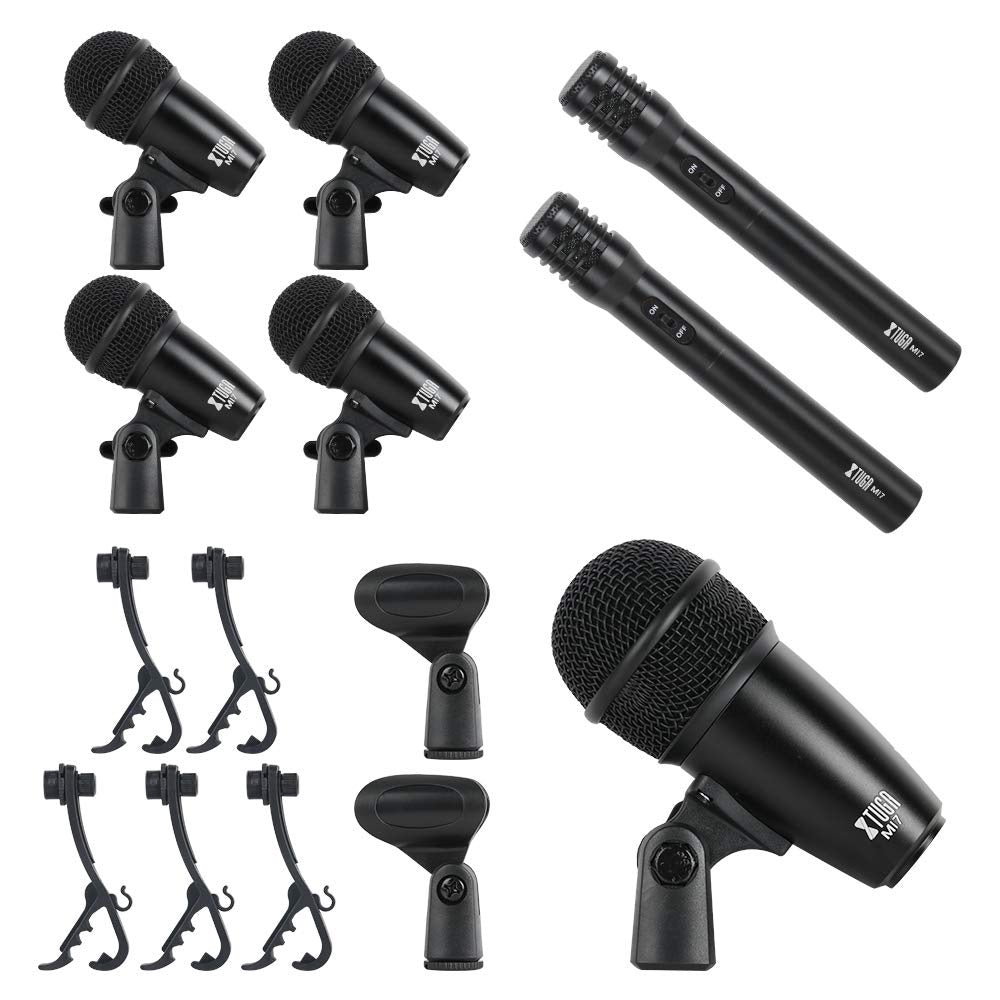

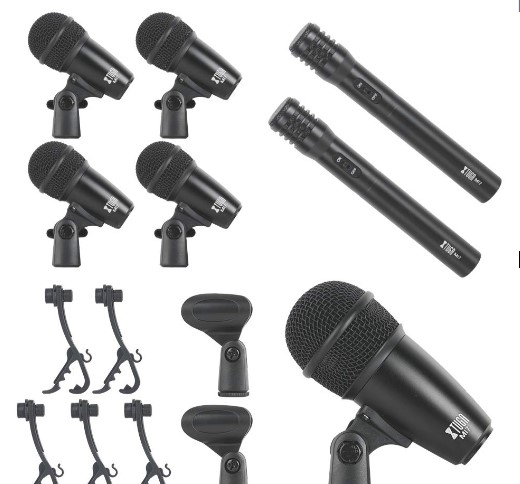

XTUGA New MI7 7Pcs Wired Dynamic Drum Mic Kit – Whole Metal Kick, Bass, Tom/Snare & Cymbals Microphone Set. Suitable for drums, vocals, and other instruments. Includes thread clip inserts and mic holders. Can be used as condenser/vlogging/stage/vocal microphones.
Microphone Elements
Big Drum Microphone Element
- Type: Dynamic moving coil
- Polar Pattern: Unidirectional
- Frequency Response: 50Hz – 15kHz
- Sensitivity: -60 dB ± 3 dB (0 dB = 1 V/Pa at 1 kHz)
- Output Impedance: 500Ω ± 30% (at 1 kHz)
Small Cylinder Microphone Element
- Type: Dynamic moving coil
- Polar Pattern: Unidirectional
- Frequency Response: 50Hz – 14kHz
- Sensitivity: -52 dB ± 3 dB (0 dB = 1 V/Pa at 1 kHz)
- Output Impedance: 500Ω ± 30% (at 1 kHz)
Condenser Microphone Element
- Type: Electret condenser
- Polar Pattern: Unidirectional
- Frequency Response: 50Hz – 18kHz
- Sensitivity: -45 dB ± 3 dB (0 dB = 1 V/Pa at 1 kHz)
- Output Impedance: 200Ω
- Max Input SPL: 130 dB (at 1 kHz <1% THD)
- S/N Ratio: 70 dB
- Power Supply: 48V
