XTUGA NEW MI7 7-Piece Wired Dynamic Drum Mic Kit
XTUGA is a brand of high-end microphones and electronic audio products. It designs and manufactures all kinds of high-quality and professional consumer audio products. Its excellent quality, reliable performance and value make XTUGA famous in China and enjoys great popularity in the electronic industry. XTUGA's multifarious product series includes professional wireless microphones and in-ear monitoring systems designed for performers, singing equipment suits for portable music players and smart phones, and mixing consoles for professional DJ used. Today, XTUGA's products have been widely used in various industries, whether the stage of concert , studio, radio and television stations,or the public address systems of religious venus, conference facilities or other occasions. There will be XTUGA's products.
XTUGA,as a registered brand of musical instruments. Its philosophy not only has a gorgeous appearance but also an inherent quality. The purpose is to express the high quality of the public cost. Its design icons are not only suitable for those who have many years of experience in the musical instrument industry, but also suitable for the young who performs on the stage.

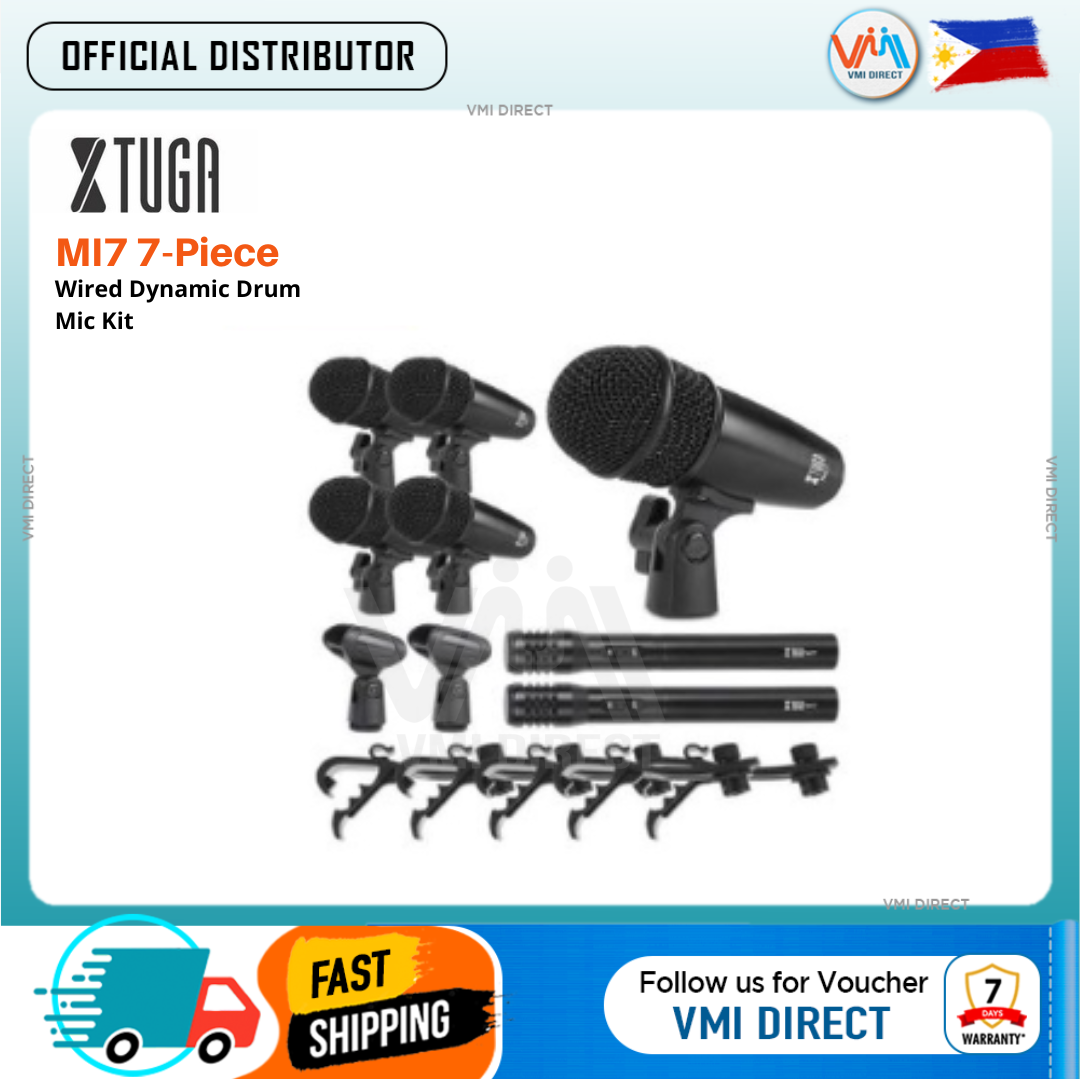

XTUGA NEW MI7 7-Piece Whole Metal Wired Dynamic Drum Mic Kit

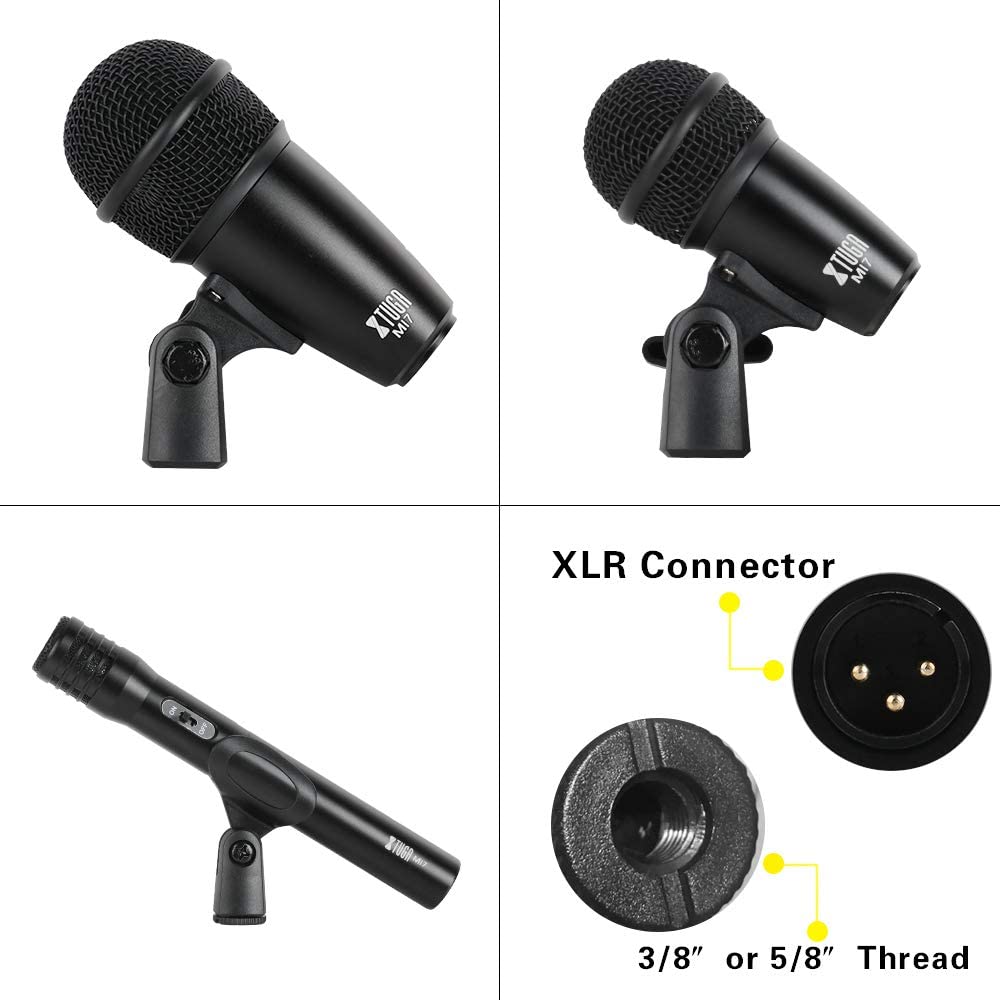

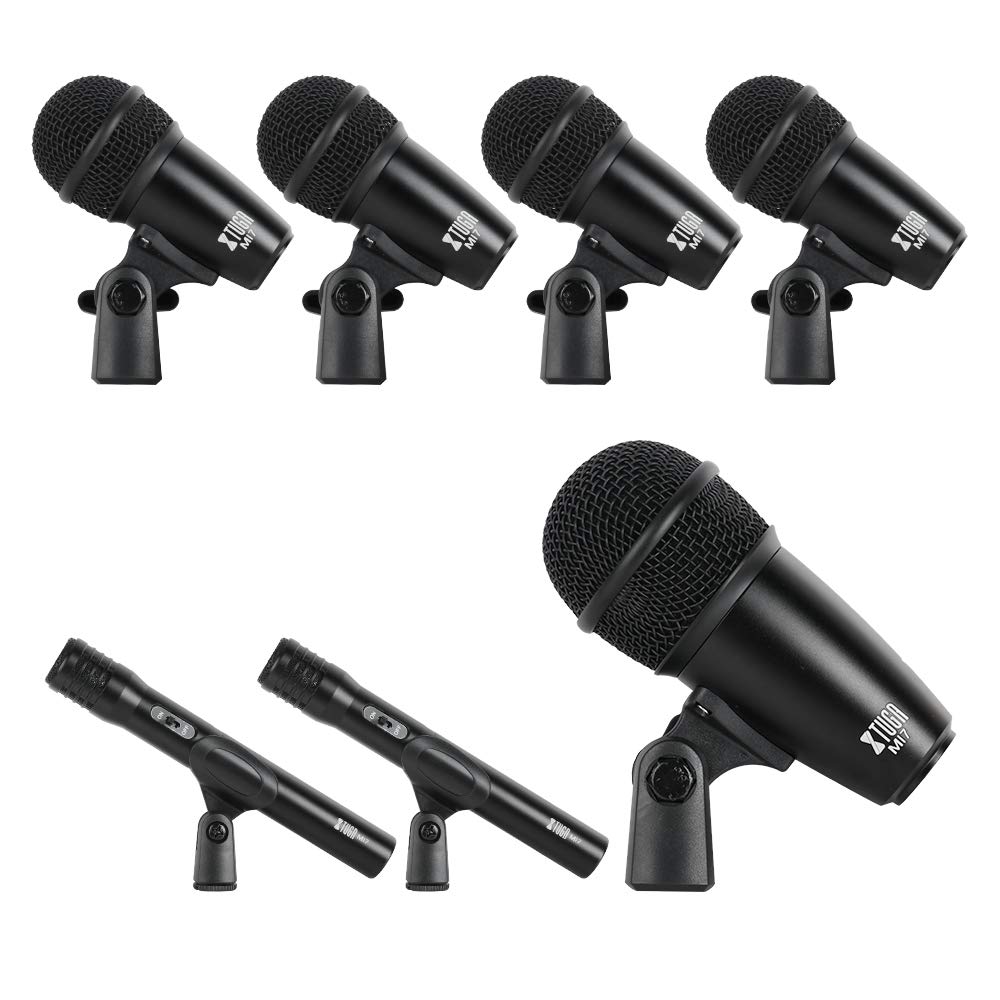

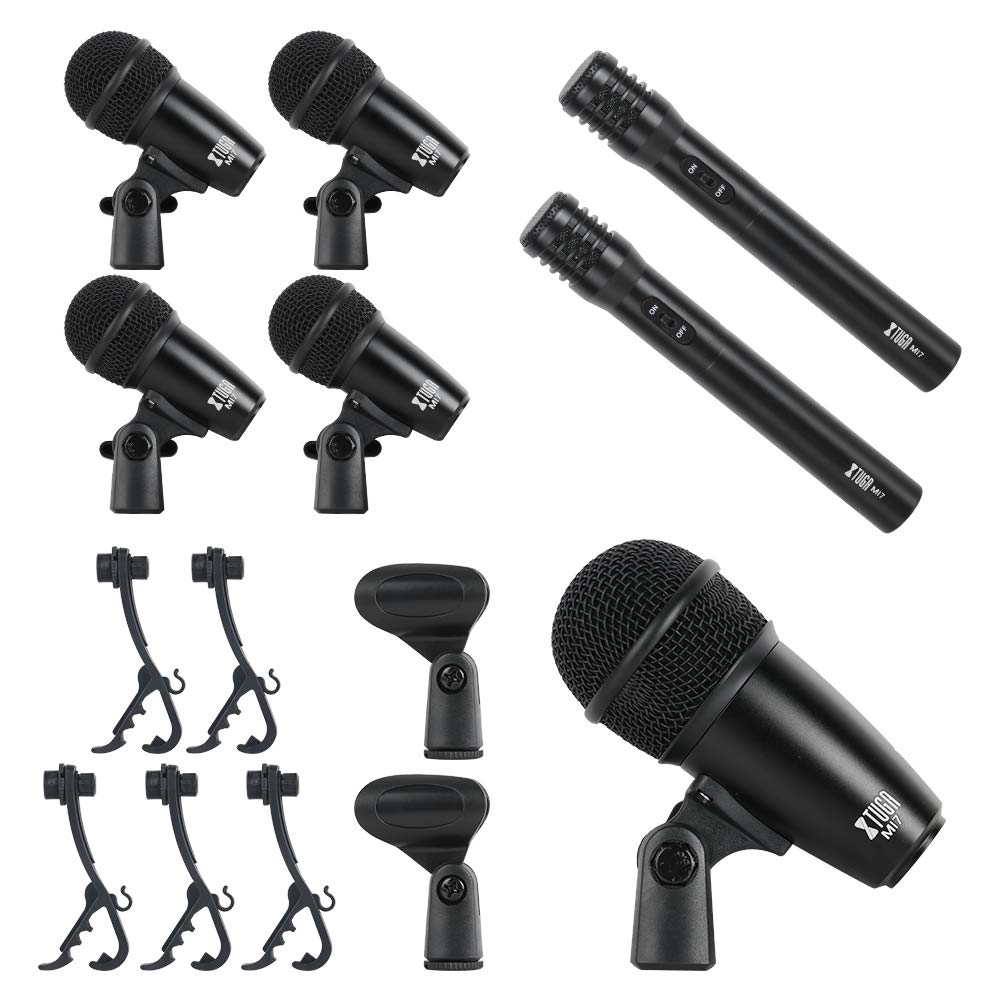

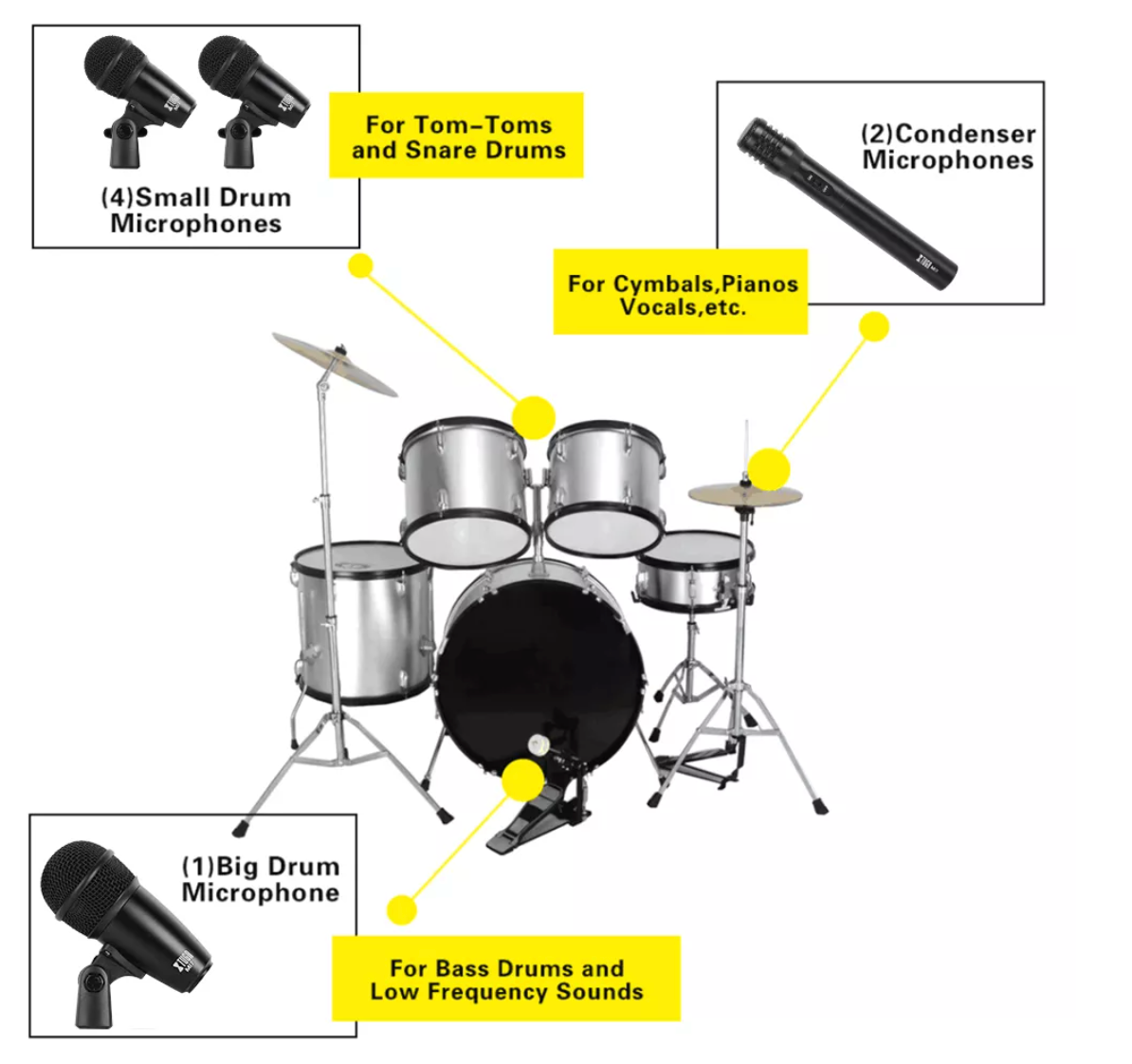

One big drum microphone; four small drum microphones; two condenser microphones; two condenser microphone holders; four thread inserts (3/8-inch and 5/8-inch threads); four 3/8-inch threads; four clamps for snare/tom microphones; and two windscreens for condenser microphones
Small Drum Mic Element and Condenser Mic Element
Small Drum Mic Element: Moving Coil Dynamic
Polar Pattern: Uni-Directional
Frequency Response: 50 Hz-14 kHz
Sensitivity: -52 dB +/- 3 dB (0 dB=1 V/Pa at 1 kHz)
Output Impedance: 500Ω +/-30% (at 1 kHz)
Condenser Mic Element: Electret Condenser
Polar Pattern: Uni-Directional
Frequency Response: 50 Hz-18 kHz
Sensitivity: -45 dB +/- 3 dB (0 dB=1 V/Pa at 1 kHz)
Output Impedance: 200Ω, Max Input SPL: 130 dB (at 1 kHz < 1% T.H.D.), S/N Ratio: 70 dB Power Supply: Phantom 48 V
GENERAL RULES FOR MICROPHONE USE
1. Aim the microphone toward the desired sound source and away from unwanted sources. This may not be obvious or intuitive, Since Supercardioid microphones such as the microphone have narrow pickup patterns and can pick up sounds from the rear. Refer to Figure 1 on the following page 2. Place the microphone as close as practical to the desired sound source (refer to the table in the opposite column) 3. Work close to the microphone for extra bass response 4. Use only one microphone to pick up a single sound source 5. Use the fewest number of microphones as practical 6. Keep multiple microphones separated by a distance equal to at least 3X the distance to the nearest sound source 7. Place mics as far as possible from reflective surfaces 8. Use a windscreen when using the microphone outdoors.
