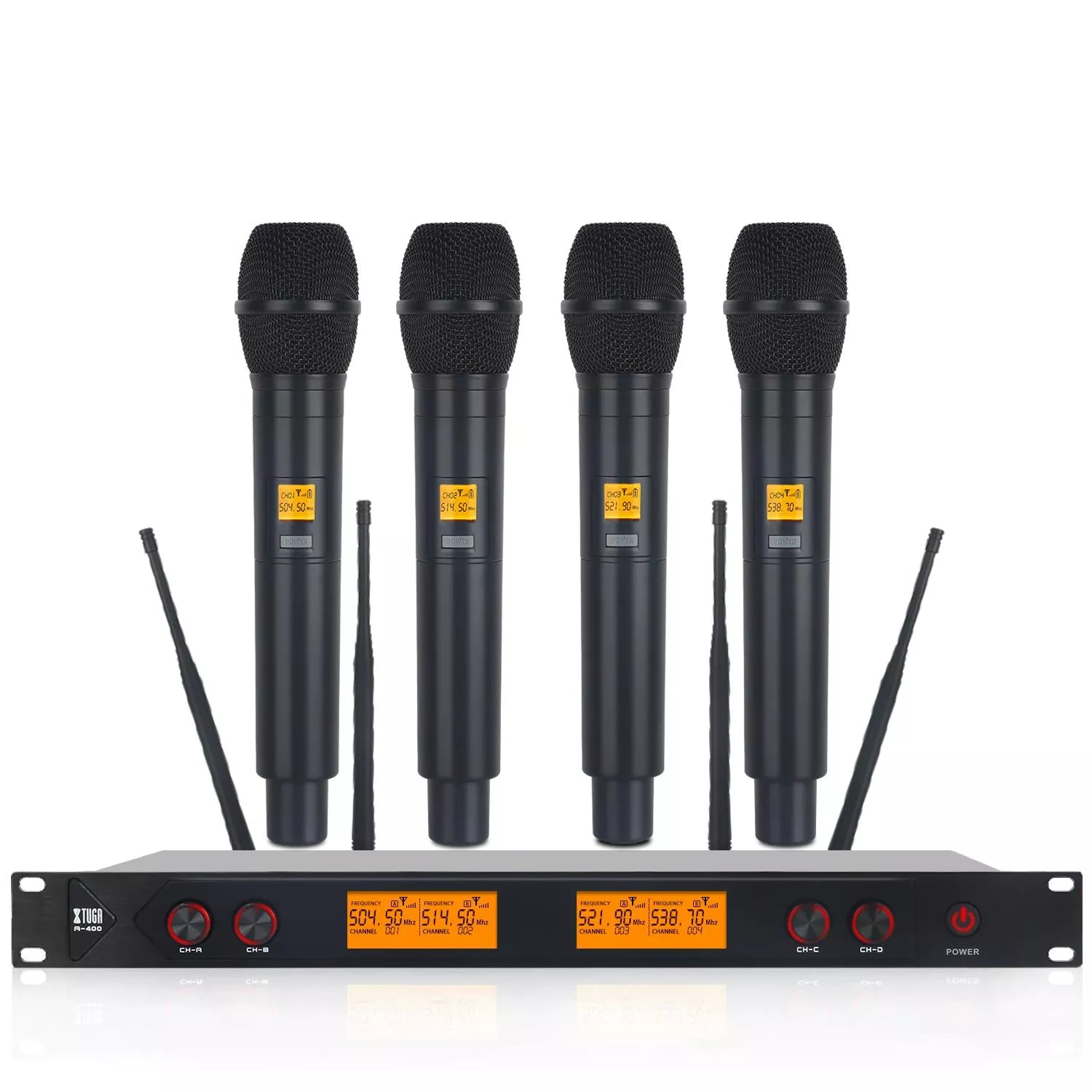

XTUGA A400 Metal Material 4-Channel UHF Wireless Microphone System with 4 Hand-held

XTUGA A400 Metal Material 4-Channel UHF Wireless Microphone System with 4 Hand-held

Regular price ₱5,599.00
Regular price Sale price ₱5,599.00
Sale Sold out
Shipping calculated at checkout.
Style
  • Professional UHF microphone system delivers clear and loud audio signal and is much more stable than the VHF,4-channel wireless microphone receiver, Fixed frequency, superior anti-interference ability. Upgraded wireless signal acquisition, 4 antennas can be installed on the back of the receiver to enhance the received signal, ensuring high frequency stability and accuracy

Up to 200 Feet within Line of Sight

Comply with new FCC rules Ultra High Frequency

XTUGA A400 Metal Material 4-Channel UHF Wireless Microphone System with 4 Hand-held

RECEIVER:

Sensitivity: >80dB
Audio output: Balanced and Unbalanced
Power requirement: AC 16V,400mA
Dimensions: 440×210×40mm
Weight(weight): Approx. 1.3kgs
One 1/4" Mixed and four XLR Individual outputs

Cartridge: Dynamic
RF output: <10mW
Normal deviation: 22kHz
Maximum deviation: 80kHz
Battery: 2 x 1.5V battery
Battery life: >8 hours

WIDE COMPATIBILITY :

This wireless microphone system works with any PA, loud speaker, mixer, amplifier or karaoke machine that has mic input and mic volume control. And it is ideal for live performances like church, weddings, presentations, meetings, trainings, public speaking, koraoke or any party.


SPECIFICATIONS:

OVERALL SYSTEM
Number of Channels: 4 channels
Carrier frequency range:
A: 504.50MHz,514.60MHz,521.90MHz,538.70MHz
B: 553.70MHz,577.10MHz,586.70MHz,593.20MHz
Stability: 0.006%
Normal deviation: 22kHz
S/N ratio: <120dB
T.H.D: <0.6%
Frequency response: 50Hz-15kHz


FEATURES:

Full metal design
4 channels can work without interference at the same time
Four Receiver Antennas
Individual volume controls on each Channel
Audio mute circuitry for quiet operation
Individual Channel Volume Controls
Introducing frequency compressing expanding technique to lower the noise and enlarge the dynamic range
Broad frequency response range, super low distortion
One 1/4" Mixed and four XLR outputs
Range 200 feet (60 Meters)

How to Use

Step 1

Connect AC adapter to a wall outlet and connect the receiver to next stage of your system.(Amplifier /Speaker)

Step 2

Install fresh batteries into transmitter. (Handheld Mic or Bodypack)

 Step 3




Turn on receiver and transmitters, enjoy reliable wireless performance.


PACKING LIST :

1*UHF Wireless Receiver
4*Handheld Microphones
4*Antennas
1*Power Adapter
1*Audio Cable
1*English User's Manual
