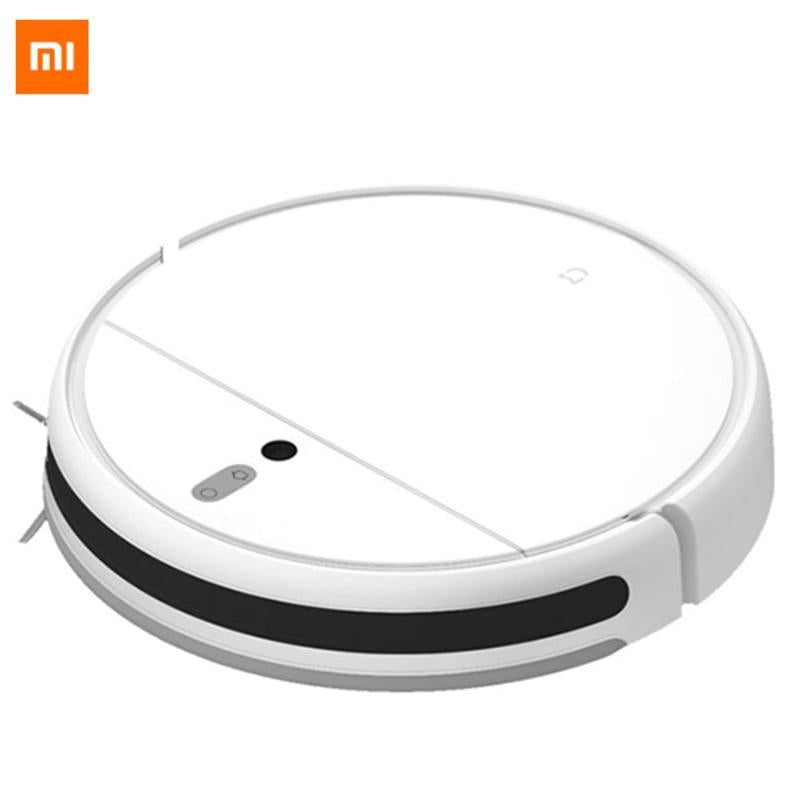

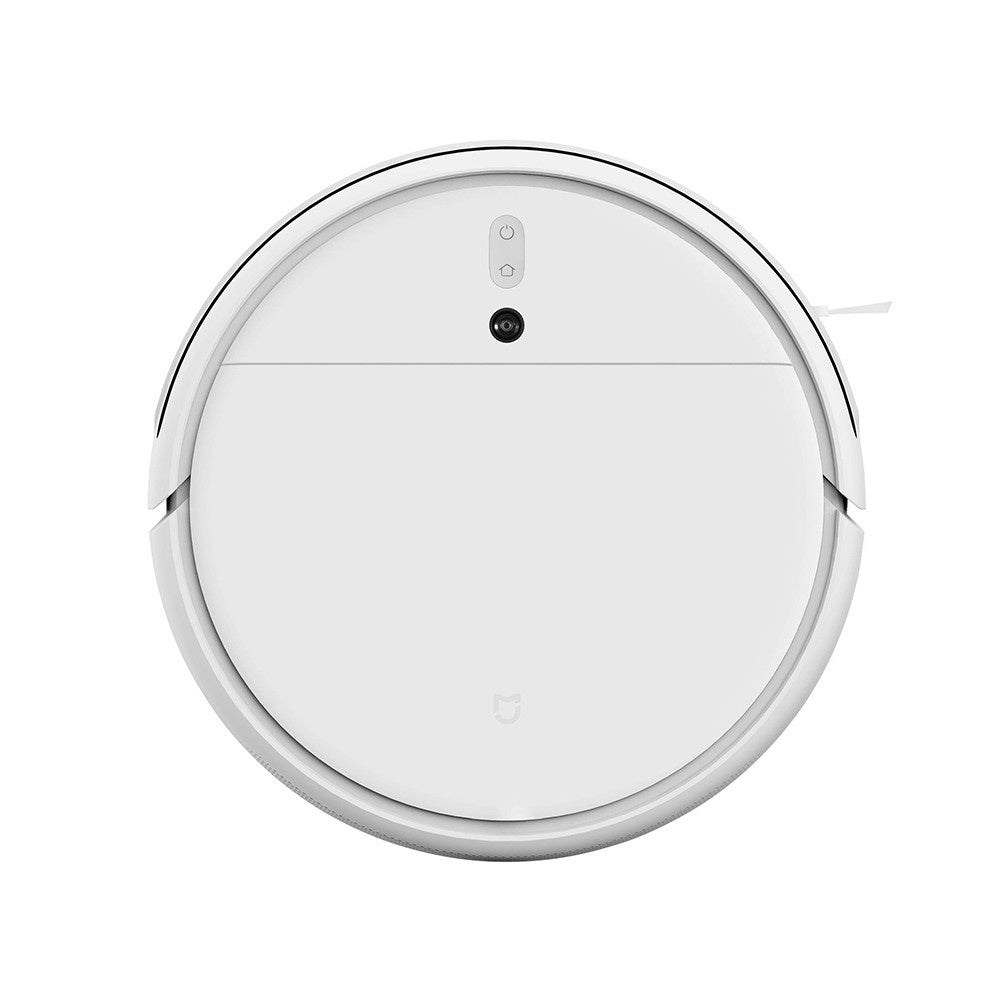

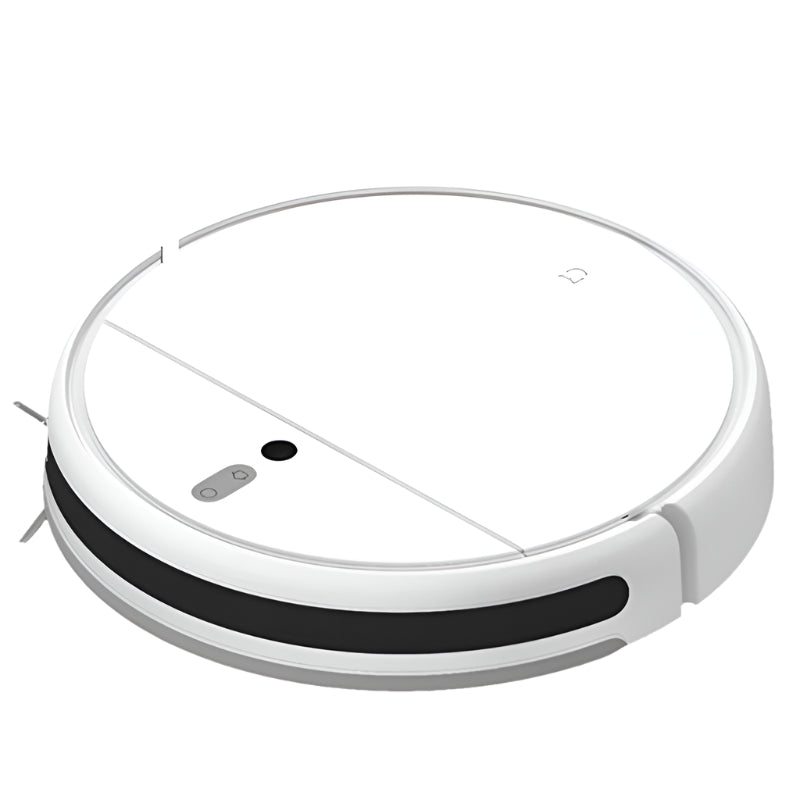

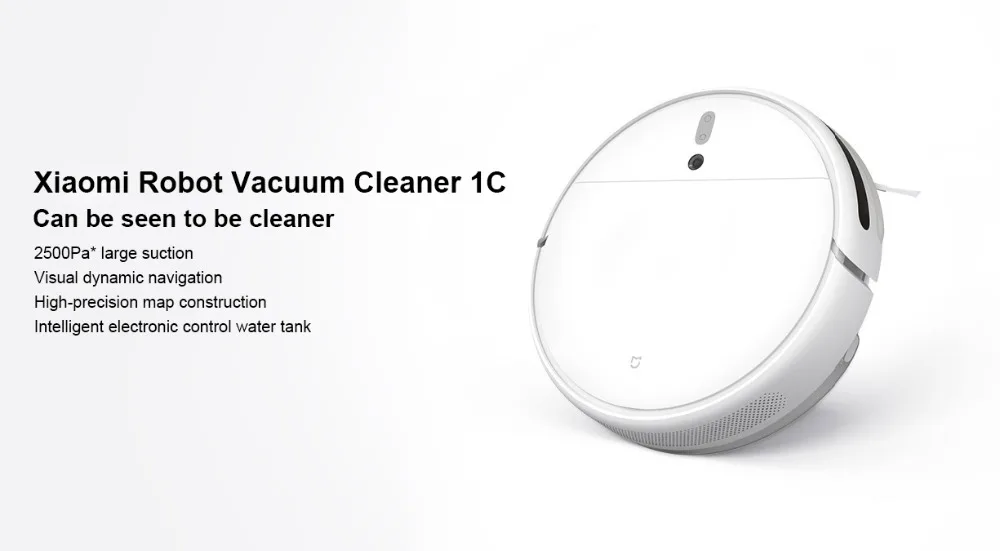

Xiaomi Mijia 1C Robot Vacuum-Mop Smart Path Planning 2500Pa App Control Sweep

New visual navigation system
Quickly understand the home environment

Equipped with a high-speed visual navigation system to help quickly capture coordinate information, extract complex spatial features, and create faster and more accurate maps.

30000 / sec                             Dynamic visualization               166°
Feature point acquisition           Panoramic planning                 Wide angle

Visual dynamic mapping

Apply professional oV vision sensor, simulate neural network algorithm, and match 50 times/second* path calculation, which can maintain dynamic survey during travel, and map drawing is more accurate and efficient.

Three sensor-assisted positioning
See clearly

The visual navigation is matched with the dual gyroscope and the optical flow sensor with multiple auxiliary positioning, which can obtain the position information more accurately and completely.

VSLAM algorithm + 4 core processor *
Will think independently, in order to be responsive

It is equipped with CortexTM-A7* quad-core data processing chip, and with VSL AM algorithm, it has more computing power, and can locate the exact position of the robot in real time and intelligently draw the working path.

4 Nuclear                     Dual core Mai 400                   1.8 GHZ
CPU                               Image processing unit*              Main frequency

Automatic intelligent electric control water tank
Precision water control, wet drag is cleaner

Equipped with a 200ml intelligent electronically controlled water tank, the water is automatically controlled throughout the whole process, and the floor is protected, and the water is evenly leaked.

Active water control/ Suspended mop/Precision electronically controlled water pump

2500Pa large suction
Sweeping all kinds of dirt on the ground

Japan’s powerful brushless motor has continuously promoted strong suction, and it can remove the dust and dirt from the floor gap at the moment of starting.

NIDEC                                    4 block                                   600 ml
Japanese brushless motor     Suction mode adjustment      Large capacity dust box

Suspension suction + powerful main brush + high precision filtration
Let every part clean and nuance

Large diameter suspension suction port that fits snugly against the ground.

Specifications:

Item Dimensions: 353 × 81.3 mm

Rated Power: 35 W

Rated Voltage: 14.4 V⎓

Net Weight: 3.1 kg

Battery Capacity: 2500 mAh ( rated capacity ) 2600 mAh ( nominal capacity )

Charging Dock

Model: CDZMJSTL

Rated Input: 100–240 V ~ 50/60 Hz 0.6 A

Rated Output: 20 V⎓ 1.2 A

Item Dimensions: 150 × 135 × 97.4 mm

What’s in the box
