Specs
Aircraft
-
Takeoff Weight: < 249 g
-
Dimensions: 138 x 81 x 58 mm (Folded), 159 x 203 x 56 mm (Unfolded), 245 x 289 x 56 mm (Unfolded, with propellers)
-
Diagonal Distance: 213 mm
-
Max Ascent Speed: 4 m/s (S Mode), 2 m/s (N Mode), 1.5 m/s (C Mode)
-
Max Descent Speed: 3 m/s (S Mode), 2 m/s (N Mode), 1 m/s (C Mode)
-
Max Speed (near sea level, no wind): 13 m/s (S Mode), 8 m/s (N Mode), 4 m/s (C Mode)
-
Max Service Ceiling Above Sea Level: 3000 m
-
Max Flight Time: 30 mins (measured while flying at 17 kph in windless conditions)
-
Max Wind Speed Resistance: 8.5-10.5 m/s (Scale 5)
-
Max Tilt Angle: 30° (S Mode), 20° (P Mode), 20° (C Mode)
-
Max Angular Velocity (by default): 150°/s (S Mode), 130°/s (P Mode), 30°/s (C Mode)
-
Operating Temperature: 0° to 40 °C (32° to 104 °F)
-
Operating Frequency: 2.400-2.4835 GHz, 5.725-5.850 GHz
Transmitter Power (EIRP)
-
2.400-2.4835 GHz: FCC ± 26 dBm, CE ± 20 dBm, SRRC ± 20 dBm
-
5.725-5.850 GHz: FCC ± 26 dBm, CE ± 14 dBm, SRRC ± 26 dBm
-
Global Navigation Satellite System (GNSS): GPS+GLONASS+GALILEO
Hovering Accuracy Range
-
Vertical: ±0.1 m (with Vision Positioning), ±0.5 m (with GPS Positioning)
-
Horizontal: ±0.3 m (with Vision Positioning), ±1.5 m (with GPS Positioning)
Gimbal
-
Mechanical Range: -110 ° to 35 ° (Tilt), -35 ° to 35 ° (Roll), -20 ° to 20 ° (Pan)
-
Controllable Range: -90 ° to 0 ° (Tilt, default setting), -90 ° to +20 ° (Tilt, extended)
-
Stabilization: 3-axis (tilt, roll, pan)
-
Max Control Speed (tilt): 100 °/s
-
Angular Vibration Range: ±0.01 °
-
Sensing System: Downward
-
Hovering Range: 0.5-10 m
-
Operating Environment: Non-reflective, discernable surfaces; Diffuse reflectivity (> 20%,such as cement pavement); Adequate lighting (lux > 15, Normal exposure environment of indoor fluorescent lamp)
Camera
-
Sensor: 1/2.3" CMOS
-
Effective Pixels: 12 MP
Lens
-
FOV: 83°
-
35 mm format equivalent: 24 mm
-
Aperture: f/2.8
-
Focus range: 1 m to ∞
ISO
-
Video: 100-3200 (Auto), 100-3200 (Manual)
-
Photos: 100-3200 (Auto), 100-3200 (Manual)
Shutter Speed
-
Electronic Shutter: 4-1/8000 s
-
Max Image Size: 2720 x 3000 (4:3), 2720 x 1080 (16:9)
-
Still Photography Modes: Single Shot
-
Interval: 2/3/5/7/10/15/20/30/60 s (JPEG), 5/7/10/15/20/30/60 s (JPEG+RAW)
-
Auto Exposure Bracketing (AEB): 3 bracketed frames at 2/3 EV Bias
-
Panorama: Sphere, 180°, and Wide-angle
-
Video Resolution: 2720 x 1530 @ 24/25/30/48/50/60fps (2.7K), 1920 x 1080 @ 24/25/30/48/50/60fps (FHD)
-
Max Video Bitrate: 100 Mbps
-
Zoom Range: 3x (2.7K), 4x (FHD)
-
QuickShot Modes: Dronie, Helix, Rocket, Circle, Boomerang
-
Supported File Formats: FAT32 (= 32 GB), exFAT (> 32 GB), Photo Formats, JPEG/DNG (RAW)
-
Video Formats: MP4 (H.264/MPEG-4 AVC)
Remote Controller & Video Transmission
-
Operating Frequency: 2.400-2.4835 GHz, 5.725-5.850 GHz
-
Max Transmission Distance (unobstructed, free of interference): 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
Signal Transmission Ranges (FCC)
-
Strong Interference (urban landscape, limited line of sight, many competing signals): Approx. 3 km
-
Medium Interference (suburban landscape, open line of sight, some competing signals): Approx. 6 km
-
Low Interference (open landscape abundant line of sight, few competing signals): Approx. 10 km
-
Operating Temperature: -10 ° to 40 ° C (14 ° to 104 ° F)
-
Transmission Power (EIRP): <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) (2.400-2.4835 GHz), <26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE) (5.725-5.850 GHz)
-
Battery Capacity: 2600 mAh
-
Voltage: 1200 mA 3.6 V (Android), 450 mA 3.6 V (iOS)
-
Supported Mobile Device Size: 160 x 86 x 8.5 mm
-
Supported USB Port Types: Lightning, Micro USB (Type-B), USB-C
Video Transmission System: Enhanced WiFi
-
Live View Quality: 720p/30fps (Remote Controller)
-
Max Bitrate: 4 Mbps
-
Latency: 170-240 ms
Charger
-
Input: 100-240 V, 50/60 Hz, 0.5 A
-
Output: 12V 1.5 A / 9V 2A / 5V 3A
-
Rated Power: 18 W
Intelligent Flight Battery
-
Battery Capacity: 2250 mAh
-
Voltage: 7.7 V
-
Charging Voltage Limit: 8.8 V
-
Battery Type: LiPo 2S
-
Energy: 17.32 Wh
-
Weight: 86.2 g
-
Charging Temperature: 5° to 40°C (41° to 104°F)
-
Max Charging Power: 29 W
Footnotes
1. The standard weight of the aircraft (including battery, propellers, and a microSD card) is 242 grams. Actual product weight may vary. Registration is not required in some countries and regions. Check local rules and regulations before use. These specifications have been determined through tests conducted with the latest firmware. Firmware updates can enhance performance, so updating to the latest firmware is highly recommended.
2. Due to local policy and regulation restrictions, the 5.8 GHz frequency band is currently banned in certain countries, including but not limited to Japan, Russia, Israel, Ukraine, and Kazakhstan. Please use the 2.4 GHz frequency band when operating in these locations. Always check local rules and regulations before use, as they may change over time.
3. Maximum flight range specification is a proxy for radio link strength and resilience, not aircraft battery capability. It only refers to the maximum, one-way flight distance. Data was measured in an open environment without interference. Please pay attention to the return prompt on the DJI Fly app during actual flight. Refer to the following applicable standard in different countries and regions:
FCC: United States, Australia, Canada, Hong Kong, Taiwan, Chile, Colombia, Puerto Rico, and other regions;
SRRC: Mainland China;
CE: UK, Russia, France, Germany, Portugal, Spain, Switzerland, Macau, New Zealand, UAE, and other regions;
MIC: Japan.
4. Data is tested under different standards in open areas free of interference. It only refers to the maximum, one-way flight distance without considering Return to Home. Please pay attention to RTH prompts in the DJI Fly app during actual flight.
INSIDE THE BOX

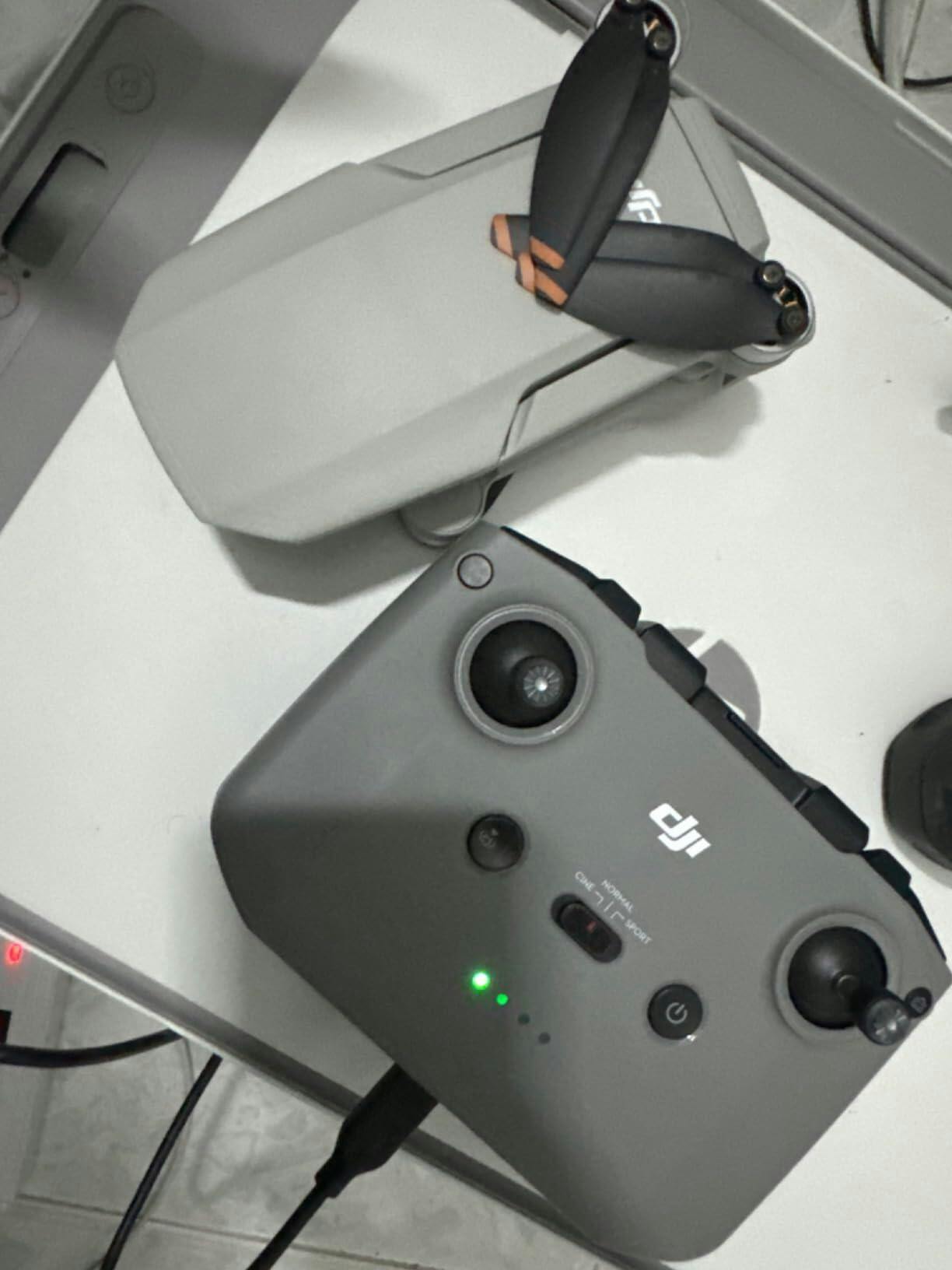

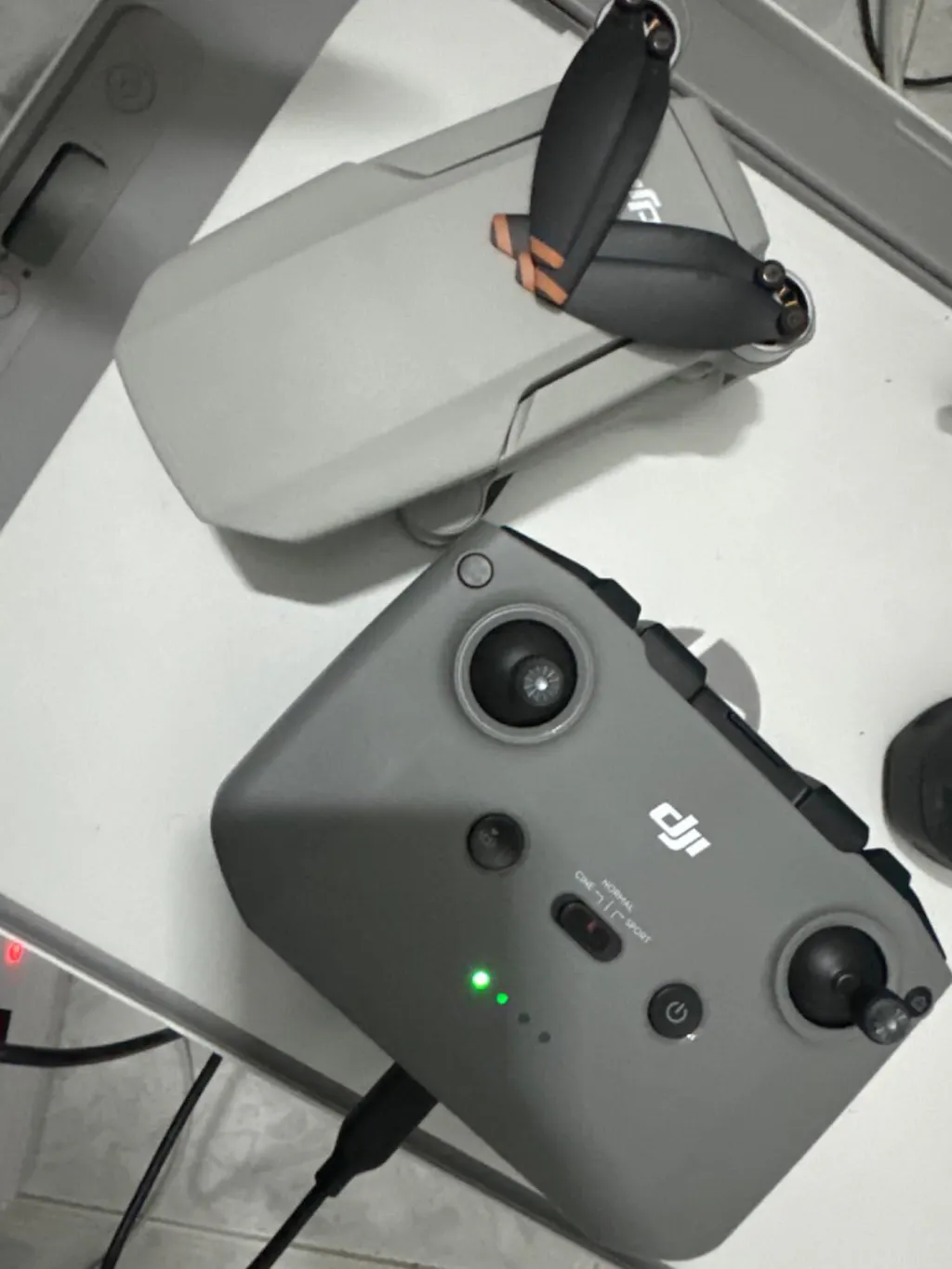

-1x DJI Mini 2 Aircraft
-
-1x Remote control
-
-3x Intelligent Flight Battery
-
-6x Pair of Spare Propellers
-
-1x Gimbal Protector
-
-1x USB-C Data Cable
-
-3x RC Cable (USB-C, Lightning, Micro USB) (1 each)
-
-2x Spare control sticks
-
-18x Spare Screws
-
-1x Screwdriver
-
-1x Propeller Holder
-
-1x Three-Way Charging Hub
-
-1x Shoulder Carrying Bag
